· IMX183 CMOS sensor
· ALVIUM image processing
· USB3 Vision
· Various hardware options
Alvium USB cameras are designed for use in both machine vision and embedded applications. Offering high image quality and reducing workload for the host, Alvium enables innovation among system designers. The innovative ALVIUM System on Chip (SoC) performs image corrections and preprocessing tasks onboard the camera instead of the host computer. Unlike FPGAs commonly used in machine vision cameras, the ALVIUM SoC is extremely power efficient. With Alvium, integrating hardware and software can be done effortlessly, which ultimately reduces development time. The Sony IMX183 CMOS sensor enables imaging at 20.2 megapixel and 17 frames per second. Color models ship with an IR cut filter, monochrome models ship without a filter or protection glass.
· Monochrome (1800 U-2050m) and color (1800 U-2050c) models
· ALVIUM® Technology for on-board image processing
· USB3 Vision interface for GenICam SFNC features
· Platform concept that enables the operation of different Alvium camera models with a common software
· Micro-B USB 3.1 Gen 1 connector with screw locks for industrial applications
· Precise sensor-to-lens mount alignment
· Standard M3 mounting holes for top and bottom mounting, standard M2 mounting holes for front mounting
· Industrial performance for both embedded and machine vision applications

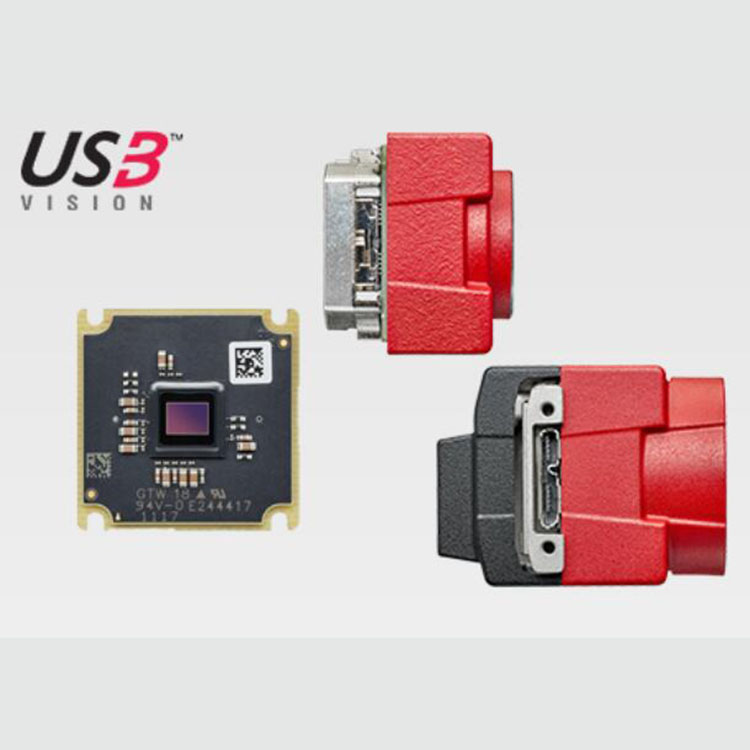

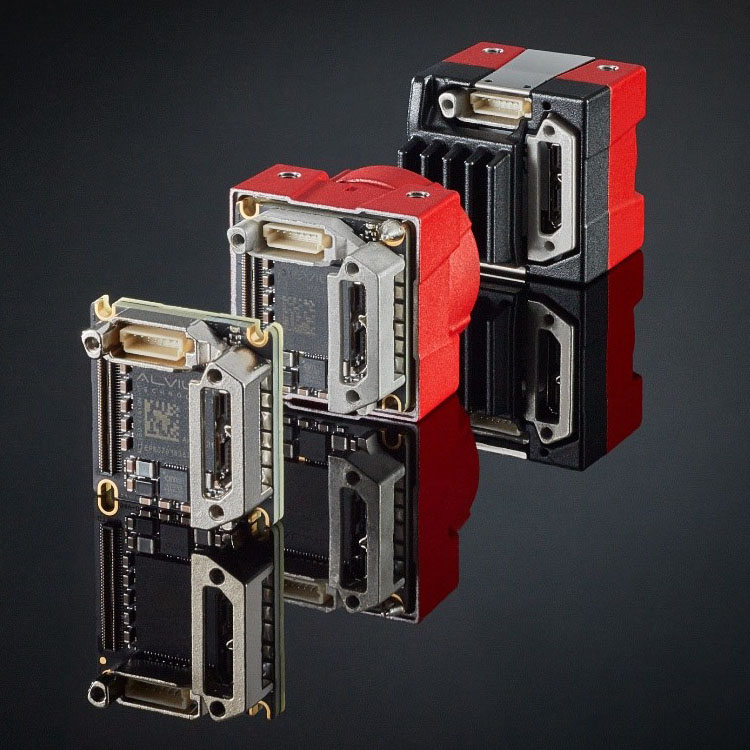

· Housings: Bare board, open housing, or closed housing

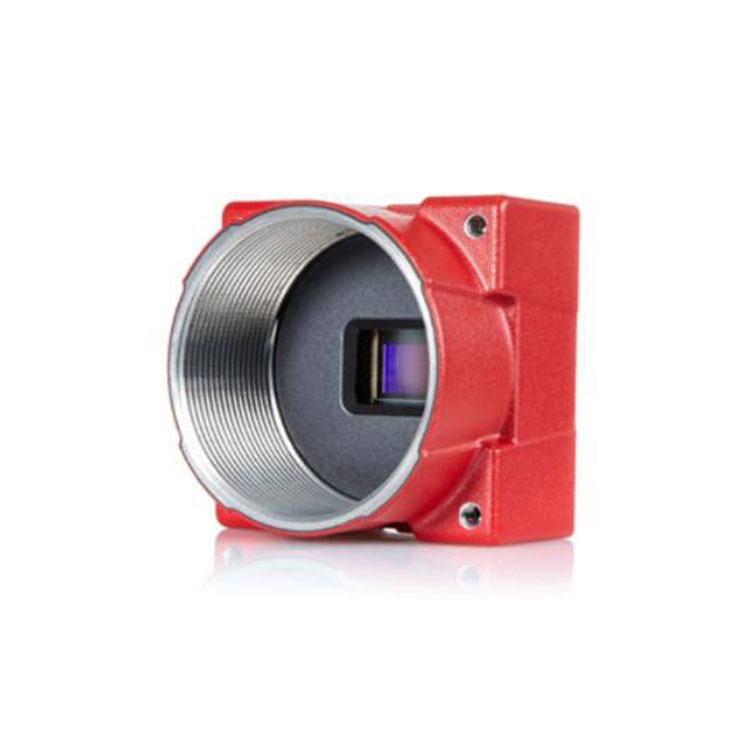

· Lens mount: C-Mount
· USB connector position: Select between the back panel or the left side of the camera (seen from the sensor side).
For more information on hardware options, including product codes and technical data, such as technical drawings and mass, see the Alvium Cameras Hardware Options document.
· Tripod adapter
· USB 3.1 Gen 1 cable with screw connectors in various lengths
· I/O cables in various lengths

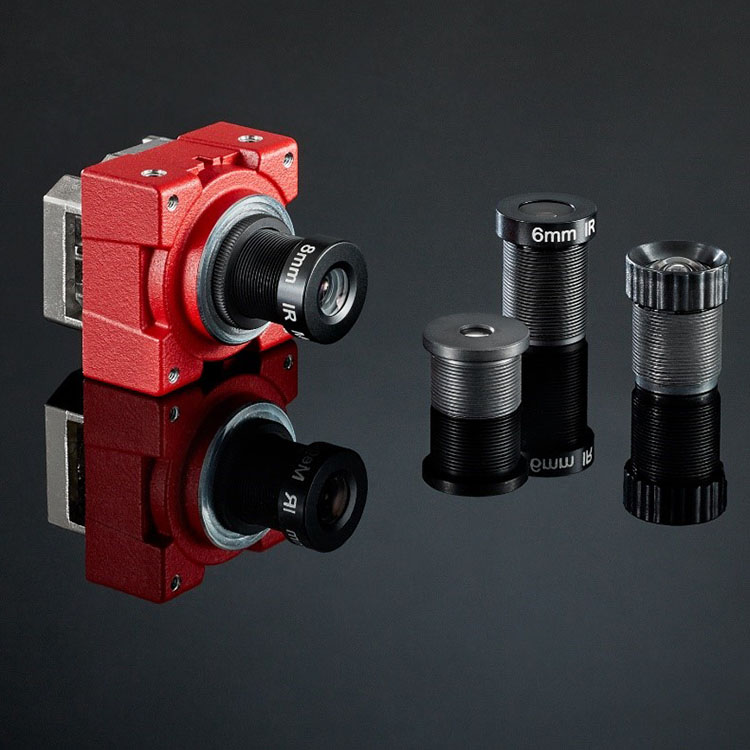

· Various lenses
Product code
14832
接口
USB3 Vision
分辨率
5496 (H) × 3672 (V)
传感器
Sony IMX183
传感器类型
CMOS
传感器尺寸
Type 1
像元尺寸
2.4 µm × 2.4 µm
Shutter mode
Global reset and Rolling shutter
Lens mount
C-Mount
Optical Filter
Type Hoya C5000 IR cut filter
最大满帧帧率
17 fps at ≥375 MByte/s, Mono8
ADC
10 Bit
缓存 (RAM)
256 KB
非易失性内存 (Flash)
1024 KB
输出
Bit位数
Max. 10 Bit
黑白像素格式
Mono8, Mono10
YUV彩色像素格式
YCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY, YCbCr8_CbYCr
RGB彩色像素格式
BayerGR8, BayerGR10, BayerGR10p, BGR8, RGB8
通用输入输出口(GPIOs)
TTL I/Os
4 programmable GPIOs
工作条件/尺寸
工作温度
+5 °C to +65 °C (housing)
电源要求 (DC)
Power over USB 3.1 Gen 1 | External power 5.0 V
功耗
USB power: 3.2 W (typical) | Ext. power: 3.4 W (typical)
重量
60 g
尺寸 (L × W × H in mm)
38 × 29 × 29
符合规范
2014/30/EU; 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B digital device; CAN ICES-003 (B) / NMB-3 (B)
