1800U-319B/C

您的当前位置: 首 页 >> 产品中心 >> Alvium

1800U-319B/C

  • 所属分类:Alvium

  • 型号:1800U-319C
  • 点击次数:
  • 发布日期:2020/04/06
  • 在线询价
详细介绍

AVT

1800U-319B/C批发

ALVIUM 1800 U-319

· IMX265 CMOS sensor

· ALVIUM image processing

· USB3 Vision

· Various hardware options

Versatile USB camera with IMX265 sensor

Alvium USB cameras are designed for use in both machine vision and embedded applications.

Offering high image quality and reducing workload for the host, Alvium enables innovation

among system designers. The innovative ALVIUM System on Chip (SoC) performs image

corrections and preprocessing tasks onboard the camera instead of the host computer. Unlike

FPGAs commonly used in machine vision cameras, the ALVIUM SoC is extremely power efficient.

With Alvium, integrating hardware and software can be done effortlessly, which ultimately

reduces development time. The Sony IMX265 CMOS sensor enables imaging at 3.2 megapixel and

53 frames per second. Color models ship with an IR cut filter, monochrome and S-Mount models

ship without a filter or protection glass.

Benefits and features

Monochrome (1800 U-319m) and color (1800 U-319c) models

ALVIUM® Technology for on-board image processing

USB3 Vision interface for GenICam SFNC features

Platform concept that enables the operation of different Alvium camera models with a

common software

Micro-B USB 3.1 Gen 1 connector with screw locks for industrial applications

Precise sensor-to-lens mount alignment

Standard M3 mounting holes for top and bottom mounting, standard M2 mounting holes for

front mounting

Industrial performance for both embedded and machine vision applicationsHardware options

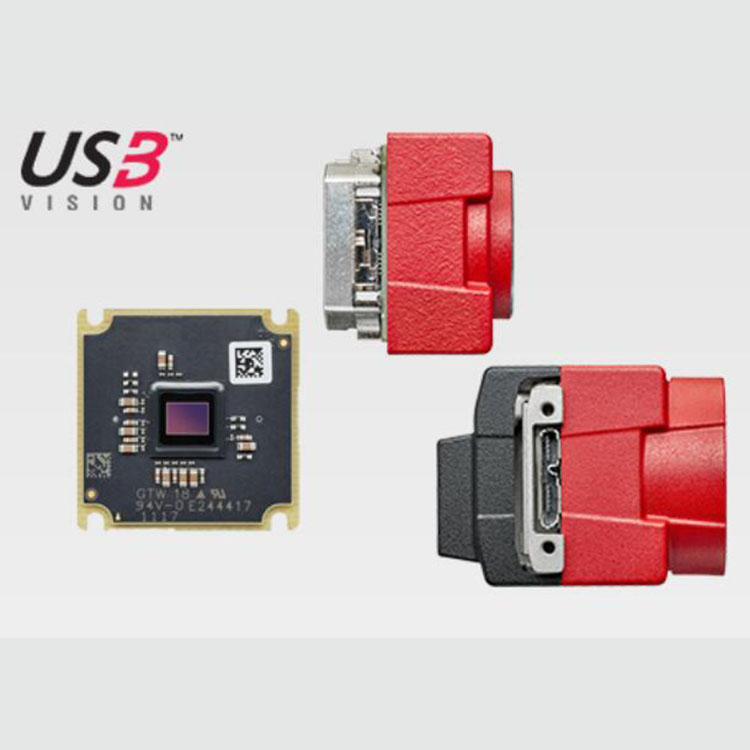

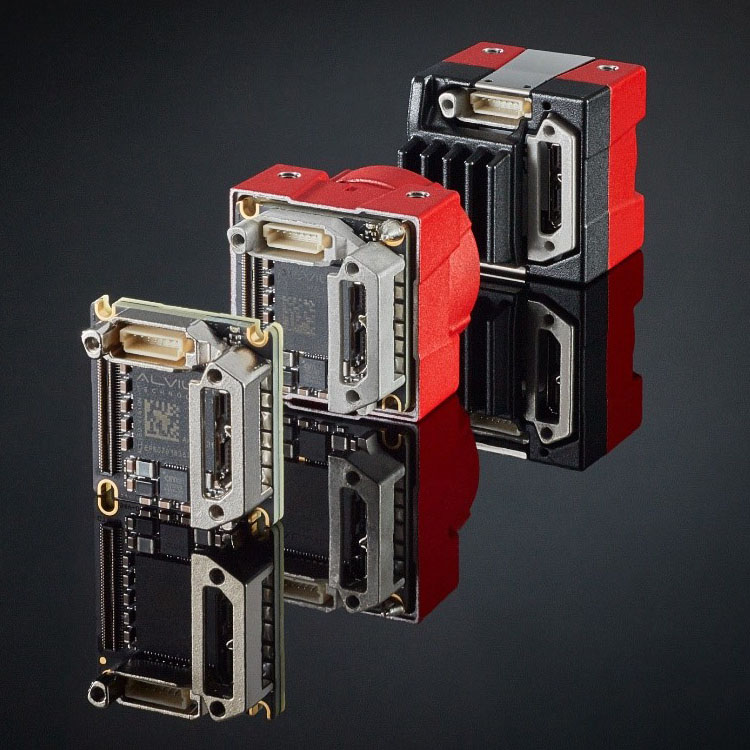

Housings: Bare board, open housing, or closed housing

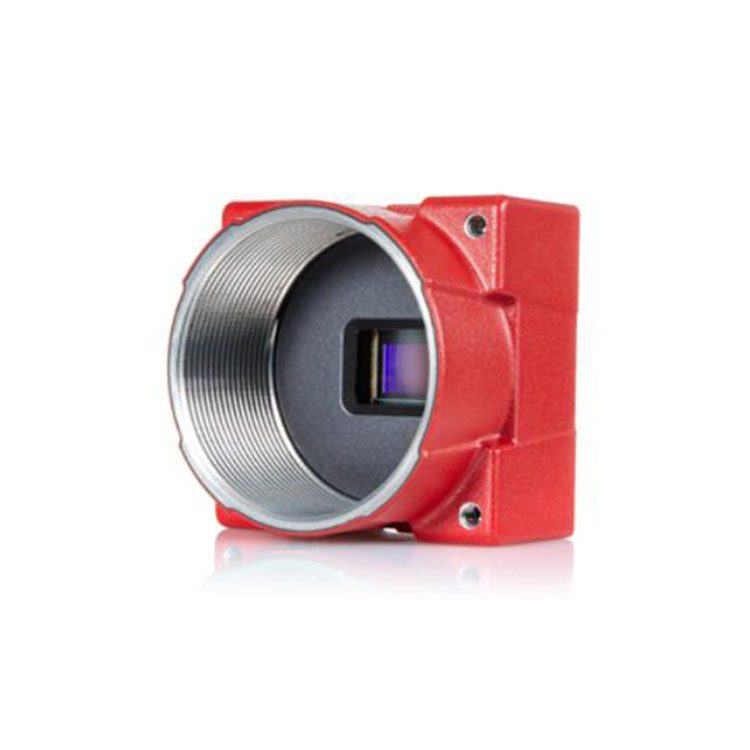

Various lens mounts: C-Mount, CS-Mount, or S-Mount

USB connector position: Select between the back panel or the left side of the camera (seen

from the sensor side).

For more information on hardware options, including product codes and technical data, such as

technical drawings and mass, see the Alvium Cameras Hardware Options document.

Available accessories

Tripod adapter

USB 3.1 Gen 1 cable with screw connectors in various lengths

I/O cables in various lengths

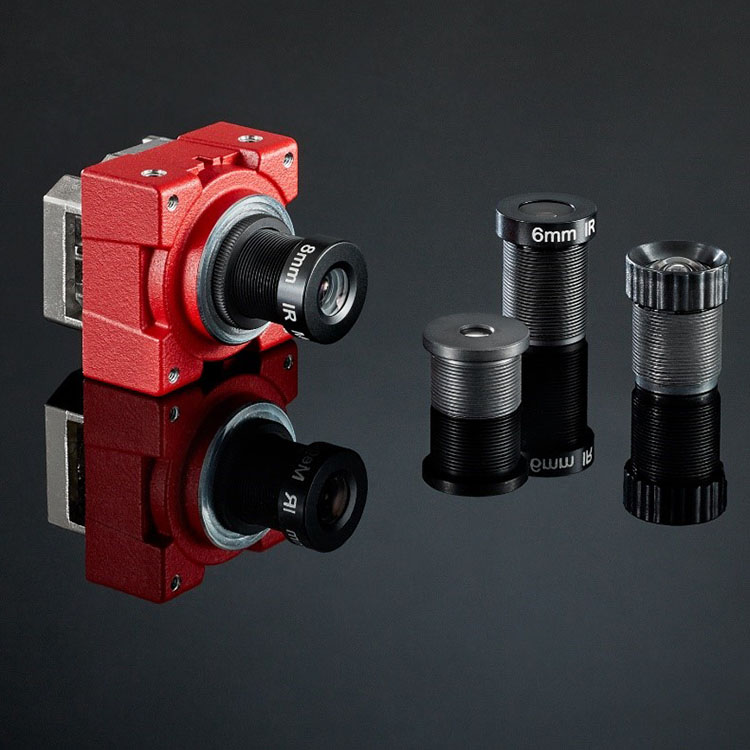

Various lenses and Allied Vision S-Mount lenses with focal lengths 2.97 - 12 mm

性能参数

Alvium 1800 U

-319

接口

USB3 Vision

分辨率

2064 (H) × 1544 (V)

Spectral range

300 to 1100 nm

传感器

Sony IMX265

传感器类型

CMOS

Shutter mode

Global shutter

传感器尺寸

Type 1/1.8

像元尺寸

3.45 µm × 3.45 µm

Lens mounts (available)

C-Mount, CS-Mount, S-Mount

帧率

53 fps at ≥200 MByte/s, Mono8

ADC

12 Bit

缓存 (RAM)

256 KB

非易失性内存 (Flash)

1024 KB

成像性能

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1

standard for characterization of image sensors and cameras. Measurements are typical values for

monochrome models measured without optical filter.

在波长为529nm下,量子转换效率

64 %

暗噪声

2.1 eˉ

饱和电子数

10400 eˉAlvium 1800 U

-319

动态范围

72 dB

绝对灵敏度阈值

2.7 eˉ

输出

Bit位数

Max. 12 Bit

黑白像素格式

Mono8, Mono10, Mono12, Mono12p

YUV彩色像素格式

YCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY,

YCbCr8_CbYCr

RGB彩色像素格式

BayerGR8, BayerGR10, BayerGR10p, BayerRG12,

BayerRG12p, BGR8, RGB8

通用输入输出口(GPIOs)

TTL I/Os

4 programmable GPIOs

工作条件/尺寸

工作温度

+5 °C to +65 °C housing temperature

电源要求 (DC)

Power over USB 3.1 Gen 1 | External power 5.0

V

功耗

USB power: 2.2 W (typical) | Ext. power: 2.4 W

(typical)

重量

15 g (bare board)

尺寸 (L × W × H in mm)

13 × 26 × 26 (bare board, standard), 13 × 30 ×

26 (bare board, 90°)

符合规范

2011/65/EU, including amendment 2015/863/EU
